Alpha Smile 5 10.1 Batteries
Expandable from 10.1 kWh – 60.6 kWh
RRP $12,900

Get a free quote

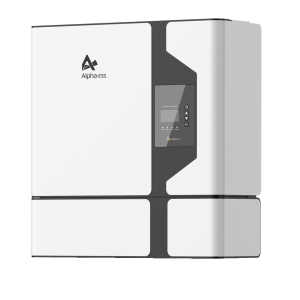

About Alpha SMILE5 10.1 Solar Batteries

Alpha Smile 5 is a high-performance, all-in-one hybrid energy storage system designed to deliver reliable power, smart energy management, and long-term savings.

Our Alpha SMILE 5 10.1 system offered at the Solar Battery Group provides 10.1kWh of storage per unit. It can expand up with plug in and play units, up to 60.6 kWh – a total of 6 modules. It’s the perfect larger battery storage system for homes and small businesses wanting real energy independence.

Unlike many battery systems, the AlphaESS Smile5 10.1kWh Battery also includes a built-in hybrid inverter, meaning there’s no need for an external inverter.

This saves costs, simplifies installation, and helps ensure seamless compatibility with any brand of solar panels and most Virtual Power Plants (VPPs) in Australia. Allowing you to unlock even more financial incentives, if you choose to.

AC Coupled

Expandable from 10.1–60.6kWh

Built-in Inverter

Easy Install & Low Maintenance

24/7 Monitoring

VPP Ready

Power Most Daily-Use Appliances Simultaneously

The Smile 5’s integrated hybrid inverter delivers 5 kW of continuous output, giving your home significantly more flexibility than smaller 3 kW systems. This higher capacity allows you to power a wide range of daily-use appliances at the same time without stressing your system:

Essential loads like: fridges, lights, TVs, computers, fans, and multiple kitchen or laundry devices at once.

Medium to high loads like: microwaves, kettles, washing machines, dishwashers, and vacuums.

Short bursts of high power spike users like: fridges, heat pump hot water units, and power tools.

This means you can run more appliances simultaneously, manage daily power spikes with confidence, and even support light to medium air-conditioning.

Fast, Efficient Charging & Discharging

The Smile 5 battery is designed to charge quickly during the day and deliver power smoothly when you need it. Its 100-amp charge and discharge capability allows it to absorb solar energy at a fast rate, which means it can refill more of its capacity during sunny hours.

The system also has a 96% Depth of Discharge (DoD). In simple terms, this means you can use almost the entire 10.1 kWh of stored energy in each cycle, instead of losing a portion of it like many older battery models. The result is more usable power for your home and better overall value from your battery investment.

UPS Backup For Instant Protection During Blackouts

The Alpha Smile 5 includes UPS-grade backup capability.

During a blackout, the Smile 5 automatically supplies power to the essential circuits connected to its backup port, helping keep critical appliances running safely and without interruption. The system makes this switch to battery power in milliseconds.

This makes it ideal for:

Families working from home
Households with medical equipment
Anyone wanting reliable blackout protection

Please note: Activating blackout protection is an opt-in feature with added cost to cover additional labour, such as modifications to your building switchboard.

Warranty

5 Years Product Warranty
10 Years Battery Performance Warranty (backed by Munich Re)

Alpha ESS guarantees that the battery will keep at least 80% of its original usable capacity for up to 10 years (120 months).*

*Additional terms and conditions apply.

Compact All-In-One Power

Despite its impressive capacity, the system is compact and installer-friendly. With a tidy wall-mounted design, it fits comfortably:

In garages
Utility rooms
Exterior walls under cover
Near switchboards or meter panels

It has a popular, clean, sleek aesthetic that makes it suitable for installations in both residential and commercial settings.

Estimated Battery Runtime

At 5 kW continuous output (hybrid inverter)

Modules	Battery Capacity (kWh)	Usable Capacity (kWh)	Approx. Runtime
1 module	10.1 kWh	9.7 kWh	1 hour 56 minutes
2 modules	20.2 kWh	19.4 kWh	3 hours 53 minutes
3 modules	30.3 kWh	29.1 kWh	5 hours 49 minutes
4 modules	40.4 kWh	38.8 kWh	7 hours 46 minutes
5 modules	50.5 kWh	48.5 kWh	9 hours 42 minutes
6 modules	60.6 kWh	58.2 kWh	11 hours 38 minutes

Runtimes vary based on load behaviour. Homes rarely run at full output, meaning real-world runtime is typically longer.

Rated for Safe Installations Indoors or Outdoors

The Alpha Smile 5 carries dual protection ratings:

IP21 for indoor installation
IP65 for outdoor installation

With an operating temperature range of –10°C to 50°C, it’s engineered for Australian climates—from cold southern regions to hot northern summers.

Installers can position the system wherever it best suits your property layout.

Does the Smile5 10.1 support retrofitting?

Yes.

Because the Smile5 has an inbuilt hybrid inverter, it can be installed:

With new solar panels, or
As a retrofit on homes that already have solar, even if their existing system has a non-hybrid inverter.

This is one of the Smile5’s strongest advantages. Its in-built hybrid inverter allows the battery to work alongside almost any existing solar system without requiring homeowners to replace their current inverter. That makes retrofitting simpler, faster, and more affordable.

Simple Energy Management with Alpha Cloud

Alpha Cloud is AlphaEss’ smart monitoring app that lets you monitor your energy generation and storage, detect issues, and to configure all AlphaESS solar batteries and devices.

It’s a free lifetime platform, designed to help you optimise your usage towards greater energy independence.

Built on the Microsoft Azure cloud server
Real-time monitoring anywhere with web and mobile apps
Remote control of system for maximum savings

Alpha Cloud

Built on the Microsoft Azure cloud server

Real-time monitoring anywhere with web and mobile apps

Remote control of system for maximum savings

The Alpha Smile-Bat-10.1p Under the Spotlight

Learn more about one of the best selling batteries, from one of the best battery brands on the market?

Get a top-line overview in our Alpha Ess smile-bat-10.1p review blog with the facts you need to know.

AlphaESS Smile 5 10.1kWh — Technical Specifications

Battery Module: SMILE-BAT-10.1P

Category	Specification
Module Model	SMILE-BAT-10.1P
Module Capacity	10.1 kWh
Usable Capacity	9.7 kWh
Capacity Range	10.1 – 60.6 kWh (96% DoD)
Module Nominal Voltage	48 V
Battery Chemistry	LFP (LiFePO₄)
Max Modules in Parallel	6 units
Max Charge/Discharge Current	100 A
Operating Temp Range	–10°C to 50°C
Protection Rating	IP21 (Indoor) / IP65 (Outdoor)
Dimensions (W×H×D)	610 × 678 × 236 mm
Weight	95 kg
Warranty	5 years product + 10 years battery performance

Inverter Specifications (Smile5-INV)

Category	Specification
Model	SMILE5-INV
Rated Output Power	5000 W
Rated Output Apparent Power	5000 VA
AC Input Power (Grid)	7500 W
Max PV Input Power	7500 W
MPPT	2 × MPPT (1 string per MPPT)
MPPT Voltage Range	70–540 V
Max PV Input Voltage	550 V
Max PV Input Current	15 A / 15 A
Max Charge/Discharge Current	100 A
Max Charge/Discharge Power	5000 W
Frequency	50 / 60 Hz
Voltage	230 V
Efficiency	96.5%
Backup Mode	UPS
Communication	Ethernet / Wi-Fi
Weight	30 kg

Download Alpha Smile 5 Datasheet | Download SMILE-BAT-10.1P Datasheet

Smile5 10.1kWh User Manual

CEC Approved Solar Product

The Alpha SMILE5 battery and the SMILE5 10.1 battery module is listed on the Clean Energy Council approved battery list. This means that these batteries meet Australian best practice standards and international battery safety standards.

It also means that it is an eligible battery for state and government solar incentives, such as the SRES in NSW or the Cheaper Home Batteries Program nationwide.

Awards & Recognition

The AlphaESS Smile 5 series has been internationally recognised for excellence in product design, innovation, and its contribution to the future of residential energy storage. These awards highlight the system’s blend of advanced engineering, user-centric design, and forward-thinking energy management – qualities that set the Smile 5 apart as one of the most trusted hybrid battery solutions available today.

iF Design Award (2018)

The Storion SMILE 5 received the prestigious iF Design Award in 2018, one of the world’s most respected honours for industrial and product design. The award acknowledges the Smile 5’s clean architecture and intuitive layout, which make the system approachable and visually distinctive.

Red Dot Design Award (2018)

The Smile 5 was awarded the Red Dot Design Award in 2018, further reinforcing its status as a standout in global product design. The Red Dot jury praised its unique visual form, stating:

“The Storion Smile 5 impresses with its unmistakable appearance. Its wide lines flow towards the control panel, creating a visual and user-friendly accent.”

ees AWARD Finalist (2018)

The Smile 5 series was shortlisted as a Finalist for the 2018 ees AWARD, a program that celebrates innovation in energy storage technology. Being recognised at this level demonstrates that the Smile 5 stands among industry-leading solutions that push forward safety, efficiency, and renewable energy adoption.

Alpha Smile 5 10.1kWh Installations From the Experts

As with installing any solar battery, it is important to ensure the Alpha Smile 5 10.1kWh system is installed correctly by an experienced professional. A high-quality installation affects everything from safety and compliance to performance, system lifespan, and how well your home is supported during a blackout. Proper configuration of the hybrid inverter, backup circuits, cabling, switchboard integration, and monitoring settings is essential for the Smile5 to operate as intended.

Our technicians are trained across our full AlphaESS residential range, including the Alpha Smile 5 10.1kWh, the Alpha Smile B3, the Alpha Smile B3 Plus, and the Alpha G3. This means they understand the specific requirements of each system, from battery module configuration and inverter setup to essential-load wiring and correct commissioning procedures. They are equipped to handle thermal placement considerations, firmware setup, communication integration, and full system testing to ensure every installation meets both manufacturer and Australian standards.

Solar Battery Group manages the entire process from initial assessment through to installation, commissioning, and performance verification. We also provide local Australian after-sales support so you have help available whenever you need it. If you want your Alpha Smile 5 10.1kWh battery installed with care, precision, and proven expertise across the entire AlphaESS range, our team is ready to deliver a reliable and professional experience from start to finish.

Pricing for Alpha Smile5 Battery Installations

The cost of installing an Alpha Smile 5 10.1kWh battery may vary because every property has different electrical layouts, safety requirements, and installation conditions. We want you to feel confident that the price you receive reflects exactly what your home needs, without unnecessary extras.

Factors Influencing Your Quote

Several factors can influence your final installation cost, including:

Your home’s electrical setup, such as switchboard condition or space limitations
Labour requirements, depending on the installation complexity
Cabling distances, if the battery must be installed far from the switchboard or solar inverter
Additional materials, such as conduits, brackets, or safety components
Any permits or compliance work required to meet Australian standards

Inclusions

While pricing can differ, your personalised quote will always include:

A standard metropolitan installation carried out by trained professionals
Full system commissioning, ensuring your battery is configured correctly from day one
Comprehensive safety testing for your peace of mind
Local Australian after-sales support, so help is available whenever you need it

Because each home is unique, the most accurate way to understand your installation cost is to request a detailed, obligation-free quote.

We’re here to make the process clear and easy, and to ensure your investment delivers maximum long-term value.

About AlphaESS

Alpha ESS

The AlphaESS range is one of the leading energy storage solutions and service providers in the world. The company specialises in the residential and commercial market, aiming to deliver the most cost-effective and fit-for-purpose solutions.

AlphaESS has 10+ subsidiaries providing local services and 40000+ systems actively running in over 50 countries, enabling millions of people to live with reliable, accessible and clean energy.

Learn more:

The Smile5 series supports DC, AC, and hybrid-coupling, works with multiple battery sizes, and is VPP-ready with UPS backup ability.

Get a FREE Alpha Smile5 10.1 Quote today!

Frequently Asked Questions

Is the Alpha Smile 5 easy to install?

Yes, the Alpha Smile5 is designed for simple, flexible installations. It’s one of the most adaptable solar battery systems available for Australian homes. The Alpha Smile5’s inbuilt hybrid inverter eliminates the need for separate components, which streamlines the entire installation process and reduces both cost and complexity. With the inverter already integrated into the system, there are fewer parts to mount, fewer cables to run, and fewer potential points of failure. This results in a cleaner setup that is quicker to install and easier to maintain.

Because everything is consolidated into a single, well-engineered unit, the Smile5 can be installed in a wide variety of home layouts. It suits garages, utility rooms, and outdoor areas with its strong IP protection ratings. Installers can position it close to the switchboard, near existing solar infrastructure, or in tight spaces where traditional multi-component systems would not fit. The integrated hybrid inverter also gives homeowners more flexibility in how they operate their energy system, since it can manage both solar generation and battery storage without requiring additional hardware.

This smart all-in-one design means faster installation times, a tidier appearance on your wall, and fewer complications down the track. Whether you are upgrading an older solar setup or building a new one, the Alpha Smile5 offers a smooth, efficient installation experience that makes it easy to start enjoying the benefits of reliable energy storage sooner.

Is the Alpha Smile 5 expandable?

Yes. The Smile 5 system is fully modular and can expand from 10.1 kWh up to 60.6 kWh by connecting up to six SMILE-BAT-10.1P battery modules in parallel, making it suitable for small homes, large homes, and small businesses.

Does the AlphaESS Smile 5 have UPS backup?

Yes. The Smile 5 provides UPS-grade blackout protection, switching from grid to battery power in milliseconds—fast enough to keep Wi-Fi, computers, lights, fridges, and security systems running with no flicker or restart.

What are the main Alpha Smile 5 specifications?

The Smile 5 includes a 10.1kWh LFP battery module, a 5 kW hybrid inverter, 96% Depth of Discharge, 100A charge/discharge current, IP21/IP65 protection, and support for solar, grid, and backup modes, making it one of the most versatile hybrid batteries available.
